Details
The type GBU xipuli piston rod seal is a compact seal with a retaining ring. Mainly used in construction machinery cylinder sealing system. Used as a buffer seal, under working conditions, the pressure of the oil cylinder is often as high as 100 Mpa. GBU type xipuli piston rod seal separates the main seal from this load. Due to its special structure, the sealing lip facing the medium reduces the pressure formed between the remaining seals and transmits it back to the system. This seal can be used singly or configured in series.
Main advantages:
● Excellent wear resistance.
● Anti-extrusion.
● Impact resistance.
● Compression deformation is small.
● Adapt to harsh working conditions.
● Conform to international standards IS07425/1 1 and 559/1 sealing groove design.
Scope of application:
Working pressure: ≤ 50Mpa (peak value up to 100Mpa)
Working temperature: -40 ~ 120C
Surface velocity: ≤ 0.5 m/s.
Hardness: 95A 2
Mainly used for walking machinery hydraulic cylinder seal.

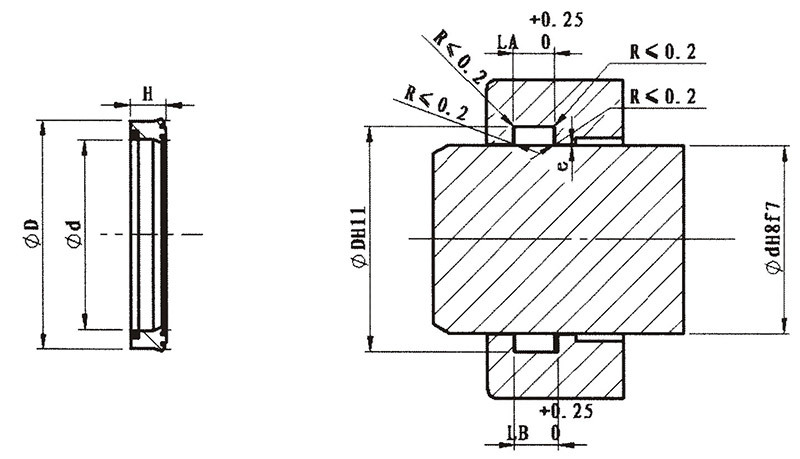

Installation: This type of seal should have axial clearance. In order to avoid damage to the sealing lip, do not pull the seal on the sharp edge during installation.
Material: XA-6095 is a kind of high and low temperature resistant polyurethane composite material independently developed by xipuli ", retaining ring material, according to international standard Is05597/1W5019
